PACCAR MX-13 Engines Power Revolutionary Vessel

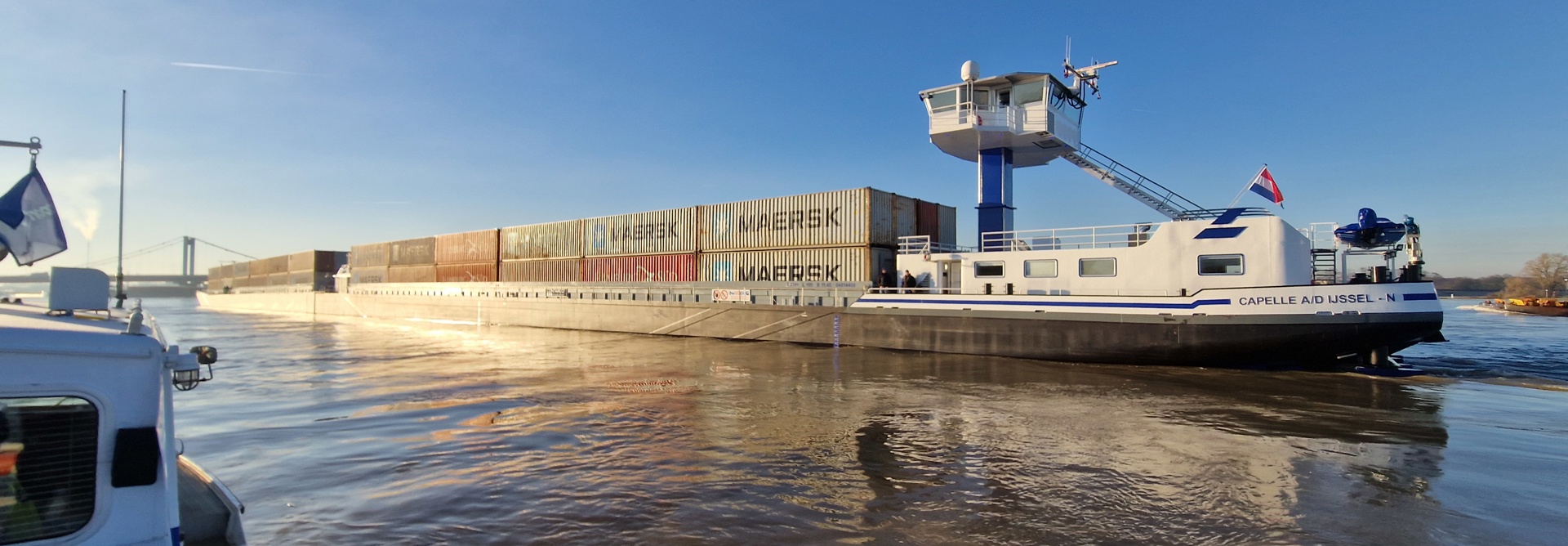

From the outside, the profound revolution is barely noticeable. But the brand-new Mannheim
I and II is anything but a conventional inland vessel. In the engine room lies a revolutionary
state-of-the-art diesel-electric propulsion system, powered by five PACCAR MX-13 engines.
DAF Components supplied these power sources.

Thanks to these 530 hp engines, built by DAF in Eindhoven, the total 200-meter-long
coupled vessel (the Mannheim I as the main ship, the Mannheim II as the pusher barge) is
approximately 30% more fuel-efficient and has five times lower NOx emissions than any
comparable conventional Stage V vessel. Additionally, the powertrain ensures that the
Rhenus Mannheim is significantly quieter and much more comfortable. The vessel is
deployed by Rhenus Partnership - part of the German logistics giant Rhenus Group - for
transport between the Ruhr area in Germany, Antwerp and Rotterdam.

Setting New Standards
Inland vessels are designed to last around 60 to 80 years. That’s why owner Rhenus - a
logistics company also active in road and rail transport – opted for the construction of a socalled coupled vessel with a propulsion system not only sets new standards in sustainability
today, but is also equipped to adapt to future technological developments.

Innovative Diesel-Electric Powertrain
The idea to use a diesel-electric powertrain originated from Rhenus. For the implementation,
NPS Driven dealer Vink Diesel was commissioned. The family-owned company from
Sliedrecht was tasked with equipping the Mannheim with five modularly connected PACCAR
MX-13 engines, each integrated into its own generator set.

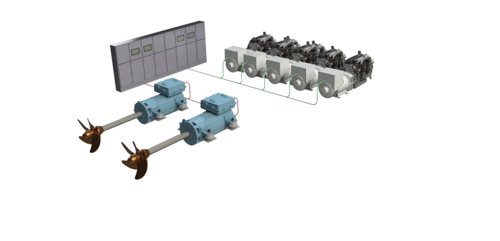

The powertrain delivers a maximum output of 2,650 hp (1,946 kW). A sophisticated power
management system determines how many engines run at a given time and at what output.
The generated electricity powers two electric motors, each driving a separate propeller of the
massive coupled vessel. A battery and an added hydrogen power source even make it
possible to maneuver electrically – and therefore emission-free – in ports. During passage
through cities along the Rhine, the Rhenus Mannheim can even sail short distances without
emissions.

More Efficient, Cleaner, Quieter
“This solution truly offers significant benefits,” says Peter van der Heijden, Director of NPS
Driven, DAF non-road distributor. “Fuel consumption is reduced by 30%, resulting in
proportionally lower CO₂ emissions. Since Rhenus opted for HVO as fuel, the CO₂ emissions
can be reduced by an additional 90%. Moreover, the PACCAR MX-13 engines emit five
times less NOx than the cleanest marine engines currently on the market. They are also
significantly quieter, enhancing crew comfort.”

Revolutionary Powertrain
“For such a revolutionary propulsion system, we searched for the most efficient and cleanest
power source available. The PACCAR MX-13 engine supplied by DAF turned out to be the
best solution in every respect,” says Robert Graf-Potthoff, Technical Inspector at Rhenus. “A
major advantage of the diesel-electric solution is its modular design. This allows us to
practically test the Mannheim’s electric motors using a small fuel cell.”

Low Maintenance, High Availability
The fact that the PACCAR MX-13 engines require significantly less maintenance than
conventional marine engines also increases the vessel’s operational availability, says GrafPotthoff. “Moreover, maintenance on the five power units can generally be performed by any
DAF dealer. With 1,100 DAF service locations across Europe, there’s always a technician
nearby. This further boosts the efficiency of the Mannheim I and II.”

Collaboration as the Key to Success
It is remarkable to see how this sustainable solution came to life through the close
collaboration between all parties involved. Rhenus, NPS Driven, Vink diesel, and DAF
combined their strengths, each contributing their expertise, vision, and dedication. This close
partnership made it possible to successfully implement the innovative powertrain. The project
demonstrates how joint efforts can lead to tangible and future-proof results. This forwardthinking propulsion technology represents a significant step toward a cleaner and quieter
inland shipping industry.
